Kala Ginkolam - 165 cm laminator - pneumatic pressure - heats up to 60°C Economical machine particularly intended for small and medium-sized workshops

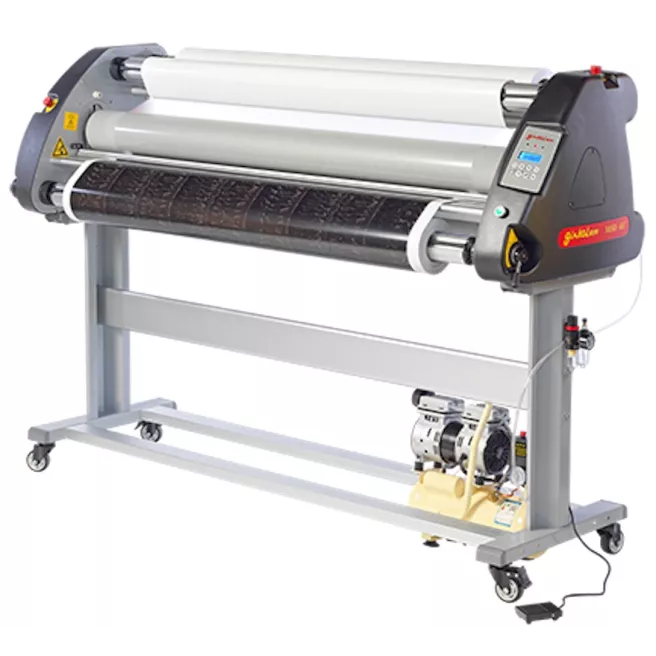

Kala GinkoLam: The Heated and Pneumatic Laminator for Perfect Finishing

The Kala GinkoLam is a heated and pneumatic laminator with a 165 cm working width, designed for flawless finishing without complex adjustments. Its adjustable heated roller up to 60°C ensures perfect adhesion of protective films while reducing bubbles, wrinkles, and static electricity. The pneumatic pressure system guarantees even application without manual adjustments, delivering consistent quality even on rigid substrates up to 45 mm thick. Easy to use and CE-certified, the GinkoLam is the ideal solution for printers, sign makers, and photographers looking for fast, precise, and secure lamination.

Why Choose the Kala GinkoLam?

✅ Heated Roller Up to 60°C for Flawless Application

• Improves adhesion of thermal and adhesive films.
• Reduces bubbles, wrinkles, and static electricity.
• Delivers a professional finish on all types of substrates.

✅ Pneumatic Pressure for Optimal Uniformity

• Even pressure across the entire width for flawless application.
• Eliminates manual adjustments with automatic pressure adaptation.
• Consistent results for large production runs or delicate materials.

✅ Versatile and Efficient

• Single-sided hot or cold lamination for optimal protection.
• Application tape for vinyl graphics.
• Adhesive mounting and panel bonding for rigid substrates up to 45 mm thick.
• Motorized take-up reel for a smooth and efficient workflow.

✅ User-Friendly and Safe

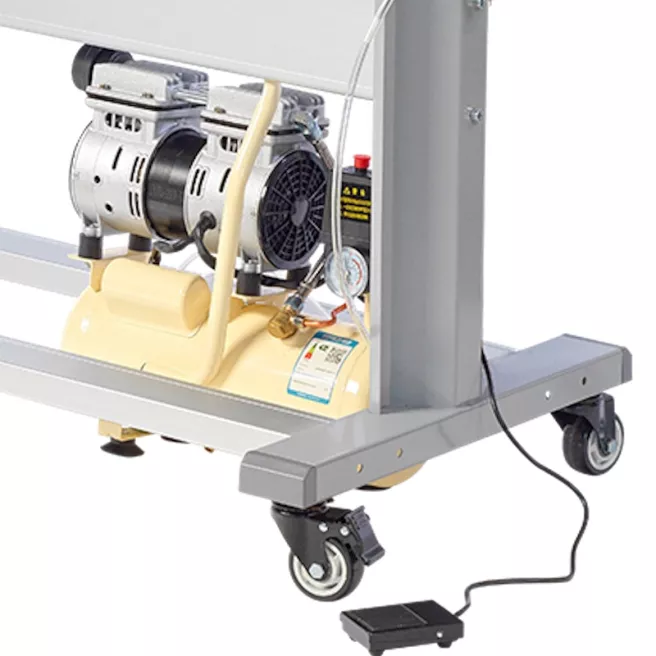

• Foot pedal control for hands-free operation.
• Graduated alignment guides for precise positioning.
• Laser safety sensors automatically stop the rollers if a hand is detected.
• CE-certified and tested by Apave laboratory for guaranteed safety.

Key Technical Features

📌 Lamination Width: 165 cm
📌 Maximum Substrate Thickness: 45 mm
📌 Heated Roller: Adjustable temperature up to 60°C
📌 Pneumatic Pressure System: Automatic pressure adjustment
📌 Adjustable Speed: 1 to 5 m/min
📌 Power Supply: 2.5 kW – 110V/230V – 50/60Hz
📌 Dimensions (L x W x H): 202 x 58 x 126 cm
📌 Net Weight: 147 kg
📌 Warranty: 1 year

Ideal Applications

🖼 Poster and Photo Lamination – Perfect and long-lasting finishes thanks to the heated roller and pneumatic pressure.
📢 Signage and Display Graphics – Bubble-free and precise application of protective films.
📦 Mounting on Rigid Panels – Seamless adhesive mounting on substrates up to 45 mm thick.
🎨 Application Tape for Vinyls – Smooth and accurate application with uniform pressure.

A High-Performance, Precise, and Secure Laminator

The Kala GinkoLam is the perfect choice for professionals looking for a heated and pneumatic laminator that combines precision, speed, and ease of use. Its assisted pressure system and innovative heated roller ensure flawless film application, without defects or complex adjustments.
